Technical Specification
TECHNICAL DATA:
Maximum operating temperature: 100°C
Minimum operating temperature: -2°C *
Operating pressure: 16 bar
Body: AISI 304 stainless steel
Ball: AISI 304 stainless steel
Core: AISI 304 stainless steel
Ball seals: PTFE
Connection seal: EPDM O-ring
Nut: AISI 304 stainless steel
Butterfly: blue
*assuming the fluid is in motion
*Medium: water, oil, non-corrosive fluid
Name / size
Code
Items / package

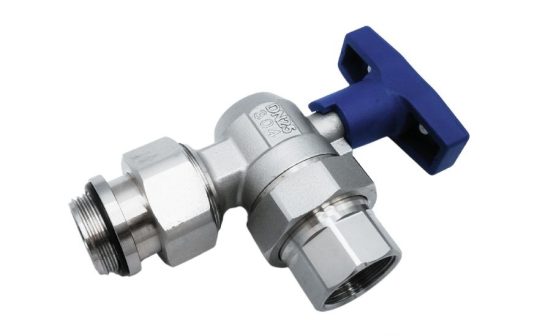

INOX Angle ball valve blue
HC-5040B
1
