Technical Specification

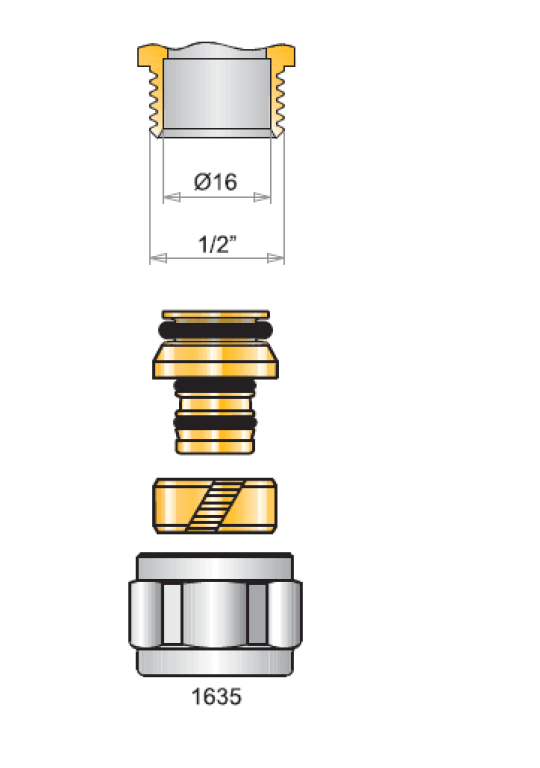

The compression fittings “Water block” are suitable for raw/soft copper pipes, light or heavy version, high density cross-linked polyethylene pipes and multilayer pipes with alluminium insert. The fittings are suitable for domestic and commercial plumbing, industrial, agricultural application and generally with every non aggressive fluid.
TECHNICAL FEATURES:
Material: CW617N – EN12165 brass nickel plated
O-ring: Nitrile rubber NBR
Dielectric ring: P.T.F.E.
Manufacturer: TIEMME (Italy)
Size: ½” x 16 x 2,0 PEX
Maximum temperature: 110°
Minimum temperature: -20°
Maximum operating pressure: 10 bar
Threads : female UNI ISO 228 // male R conical
Name / size
Code
Items / package
½” x 16x2,0 PEX
1440001
1
