Technical Specification
Technical Specification

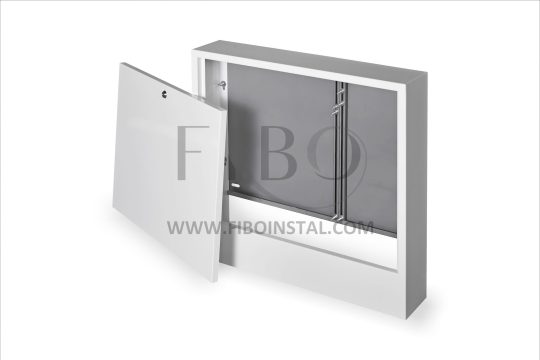

Surface mounted box for mounting heating circuit distributors.
Made entirely of 0.8 mm thick galvanized steel sheet, additionally powder coated.
The front panel is fully removable, which enables convenient installation of the manifold.
The door is closed with a coin lock.
Coin / screwdriver lockable door.
TECHNICAL DETAILS:
- Material: galvanized steel sheet 0,8 mm
- Front: powder coated RAL 9003
- Doors: closed with a coin lock
- Colour: white
- weight: 7,1 kg
- the front is fully removable which enables convenient installation of the manifold
- Coin / screwdriver lockable door.
DIMENSIONS:
- width border: 615 mm
- width interior: 585 mm
- height: 580 mm
- depth: 120 mm
Name / size
Code
Items / package
SURFACE CABINET 8
ORN-3
1
