Technical Specification
TECHNICAL PROPERTIES:
Body: Stainless steel AISI 304, outer diameter Ø35, size 3/4″ x 2
Connection nipples: Stainless steel AISI 304, internal socket 18 mm, size 3/4″
Head (shut-off valve): Brass CW617N
Seals: EPDM
Knob: ABS plastic
Manufacturer: FIBO (Poland)
Max. operating temperature: 110° C
Max. working pressure: 16 bar
Height: 8 cm
Lenght: 12,1 cm
Matching connectors:
- 3/4″ x 16 x 2,0
- 3/4″ x 20 x 2,0
- 3/4″ x 20 x 2,25

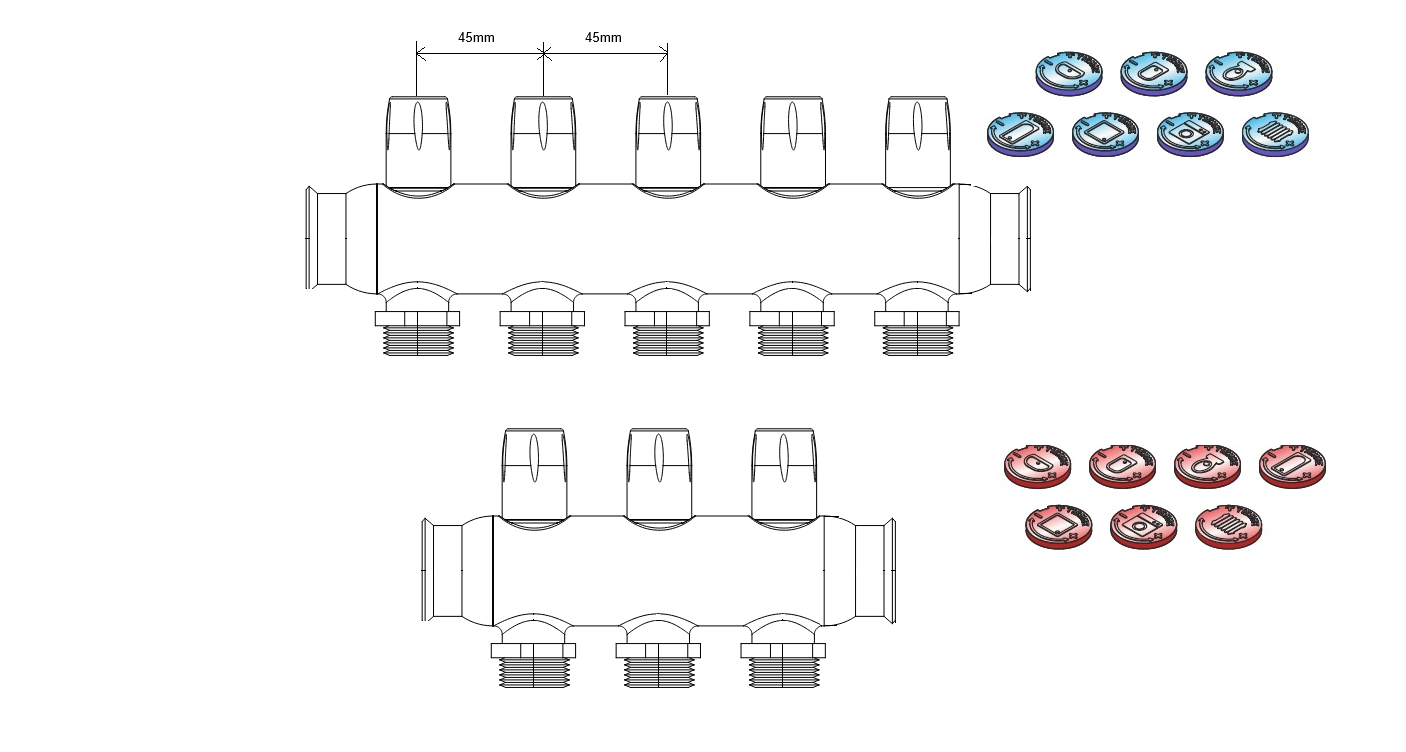

TECHNICAL DRAWING AND DIMENSIONS:
DESCRIPTION:
FIBO-INOX HOME distributors have been designed for the highest system efficiency while maintaining rigorous quality standards. Manifolds are manufactured in Poland from the highest quality materials. This guarantees full control of the manufacturing process, which translates into the certainty of providing you with the highest quality product.
OUR MANIFOLDS ARE MADE OF STAINLESS STEEL. WHAT DOES IT MEAN?

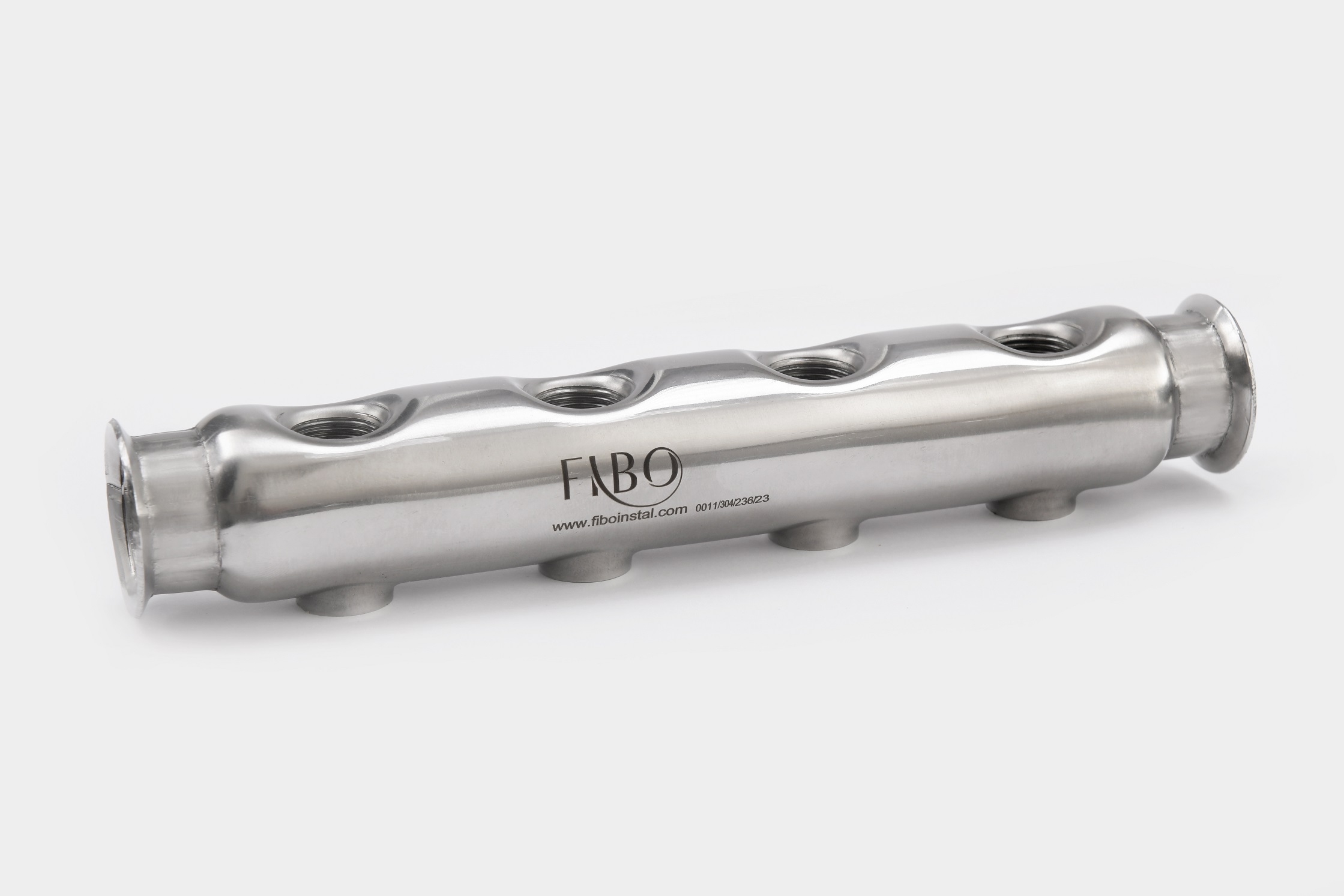

The main feature of stainless steel is its high resistance to corrosion. This property is due to its chemical composition, in particular chromium, which in the appropriate amount creates the so-called passive surface that protects steel against corrosion. This layer is self-regenerating, which makes the material suitable for use in various environments that are unfavorable for most materials. The bar profile of our distributor is made of AISI 304 stainless steel. This high-quality metal alloy guarantees long-term and reliable operation of the distributors, safety, high durability and aesthetics of the product. The bar profile is covered by a 15-year warranty.
BENEFITS OF STAINLESS STEEL MANIFOLDS FOR SANITARY WATER.
Stainless steel, called stainless steel for a reason, is perfect for drinking water installations due to its properties, surpassing other materials with its main advantages:
- high corrosion resistance
high temperature resistance (does not change its properties in conditions from cryogenic to 500° C)
high resistance to mechanical damage
does not wash out
- antibacterial
easy to clean and keep clean
aesthetic appearance
- 100% recycling
WHAT MAKES THEM DIFFERENT?
- Uniform body – up to 10 sections of a uniform beam without any connections
Stainless steel is a material with the best hygienic and durability properties
There are two sizes of section connection threads to choose from: 1/2″ and 3/4″, which allows you to optimally adjust the manifold to your needs.
A specially profiled power supply thread collar allows the use of o-ring seals without the need for additional seals such as teflon, rope or hemp
Optimized section spacing – 45 mm allows for the freedom to install pipes without specialized tools, while maintaining the compactness of the entire manifold.
Replaceable section valves extend the functioning of the distributor for many more years
ADVANTAGE OF THE DISTRIBUTION SYSTEM OVER THE TEE SYSTEM:
easy and quick installation without specialized tools – time saving
no connections in the floor – eliminating the risk of leaks
saving costs related to pipe connections under the floor and the number of pipes
equal pressure in all sections – eliminating the annoying effect of water temperature instability during simultaneous water intake from several installation points
control over the installation – the ability to cut off one water receiver without having to close the water supply to the entire building
replaceable head valve – extends the life of the manifold and the installation itself
an ideal solution for hotels, guesthouses, dormitories, public bathrooms and all public facilities
various ways of creating circulation of domestic hot water
All manifolds have white knobs with a special cap insert that allows hot or cold water to be marked with an appropriate color, as well as a receiver symbol (washbasin, toilet, bathtub, shower, washing machine, bidet, radiator).
