Technical Specification
TECHNICAL PROPERTIES:

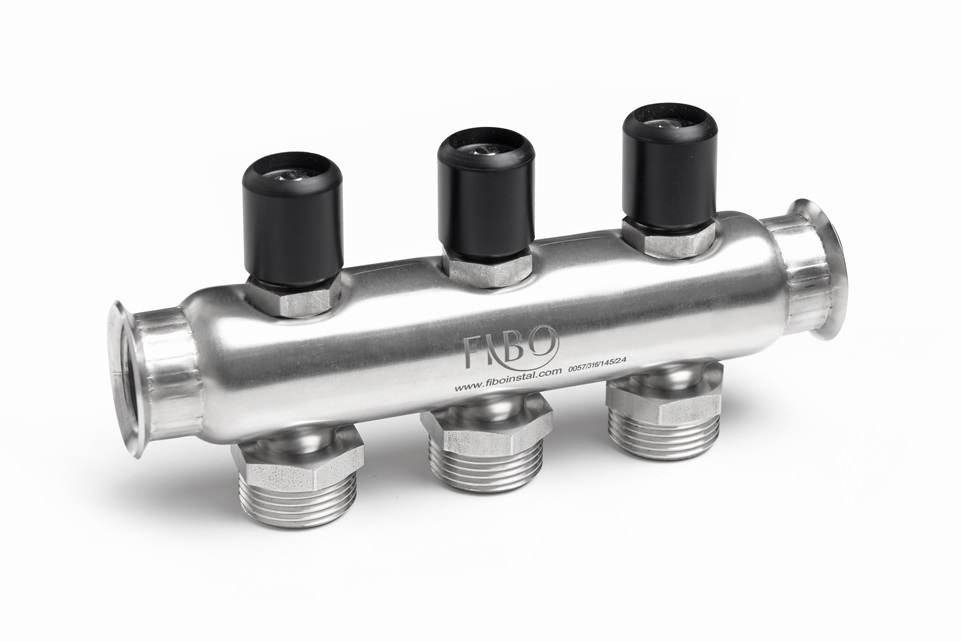

Body: Stainless steel AISI 304, outer diameter Ø35, size 3/4″ x 2
Connection nipples: Stainless steel AISI 304, internal socket 18 mm, size 3/4″
Head (shut-off valve): Stainless steel AISI 304
Seals: EPDM
Knob: POM-C
Manufacturer: FIBO (Poland)
Max. operating temperature: 110° C
Max. working pressure: 16 bar
Height: 8-9,5 cm
Lenght: 16,6 cm
Matching connectors:
- 3/4″ x 16 x 2,0
- 3/4″ x 20 x 2,0
- 3/4″ x 20 x 2,25
TECHNICAL DRAWING AND DIMENSIONS:
DESCRIPTION:
FIBO-INOX HOME distributors have been designed for the highest system efficiency while maintaining rigorous quality standards. Manifolds are manufactured in Poland from the highest quality materials. This guarantees full control of the manufacturing process, which translates into the certainty of providing you with the highest quality product.
WHY TO CHOOSE SANITARY WATER MANIFOLDS?
The main purpose of using manifolds in sanitary water installations is to minimize the number of pipe-to-fitting connections, especially those in hard-to-reach places, such as floors or walls. Not without significance is the ease of installation of the system, balanced pressure for all water receivers and the ability to disable individual circuits, e.g. during renovation works or failure of a connected device.
WHAT MAKES FIBO INOX HOME STAND OUT?
The serie of FIBO INOX HOME manifolds are specially designed for distributing drinking water in utility water systems within residential buildings and other locations. Rigorous laboratory tests have validated their high operating parameters, making FIBO INOX HOME distributors suitable for applications requiring efficiency and durability.
The varied working conditions in water installations (with variable pressure and temperature) dictate the superior quality of the materials utilized, as evidenced by certifications.
WHAT DISTINGUISHES THEM?
1. Material compatibility: The BODY, NIPPLE, and VALVE are made of high-quality certified stainless steel, specifically designed for use in food applications.
2. Uniform body – from 2 to 10 sections of a continuous bar without joints
3. Innovative design of the valve head with a patent application at the Polish Patent Office No. P.449099.
4. Optimized section spacing- 45 mm allows for easy pipe installation without using specialized tools, while maintaining the compactness of the entire manifold.
5. A specially profiled supply thread collar allows the use of O-ring seals.
6. Unique body design to obtain the best operating parameters- confirmed by the registration of an EU industrial design.
OUR MANIFOLDS ARE MADE OF STAINLESS STEEL. WHAT DOES IT MEAN?
Stainless steel is a material with superior properties.
Appreciated for its high resistance to temperature, pressure, and mechanical damage, stainless steel develops a unique passive layer on its surface, making it corrosion-resistant.
Stainless steel is a material that is safe for human health, possessing excellent hygienic properties. It does not release harmful chemical compounds into the environment, is non-leaching, and exhibits antibacterial qualities.
The bar profile is covered by a 15-year warranty.
BENEFITS OF STAINLESS STEEL MANIFOLDS FOR SANITARY WATER.
Stainless steel, called stainless steel for a reason, is perfect for drinking water installations due to its properties, surpassing other materials with its main advantages:
- high corrosion resistance
high temperature resistance (does not change its properties in conditions from cryogenic to 500° C)
high resistance to mechanical damage
does not wash out
- antibacterial
easy to clean and keep clean
aesthetic appearance
- 100% recycling
All manifolds have white knobs with a special cap insert that allows hot or cold water to be marked with an appropriate color, as well as a receiver symbol (washbasin, toilet, bathtub, shower, washing machine, bidet, radiator).
Diagrams
ADVANTAGE OF THE DISTRIBUTION SYSTEM OVER THE TEE SYSTEM:
easy and quick installation without specialized tools – time saving
no connections in the floor – eliminating the risk of leaks
saving costs related to pipe connections under the floor and the number of pipes
equal pressure in all sections – eliminating the annoying effect of water temperature instability during simultaneous water intake from several installation points
control over the installation – the ability to cut off one water receiver without having to close the water supply to the entire building
replaceable head valve – extends the life of the manifold and the installation itself
an ideal solution for hotels, guesthouses, dormitories, public bathrooms and all public facilities
various ways of creating circulation of domestic hot water
