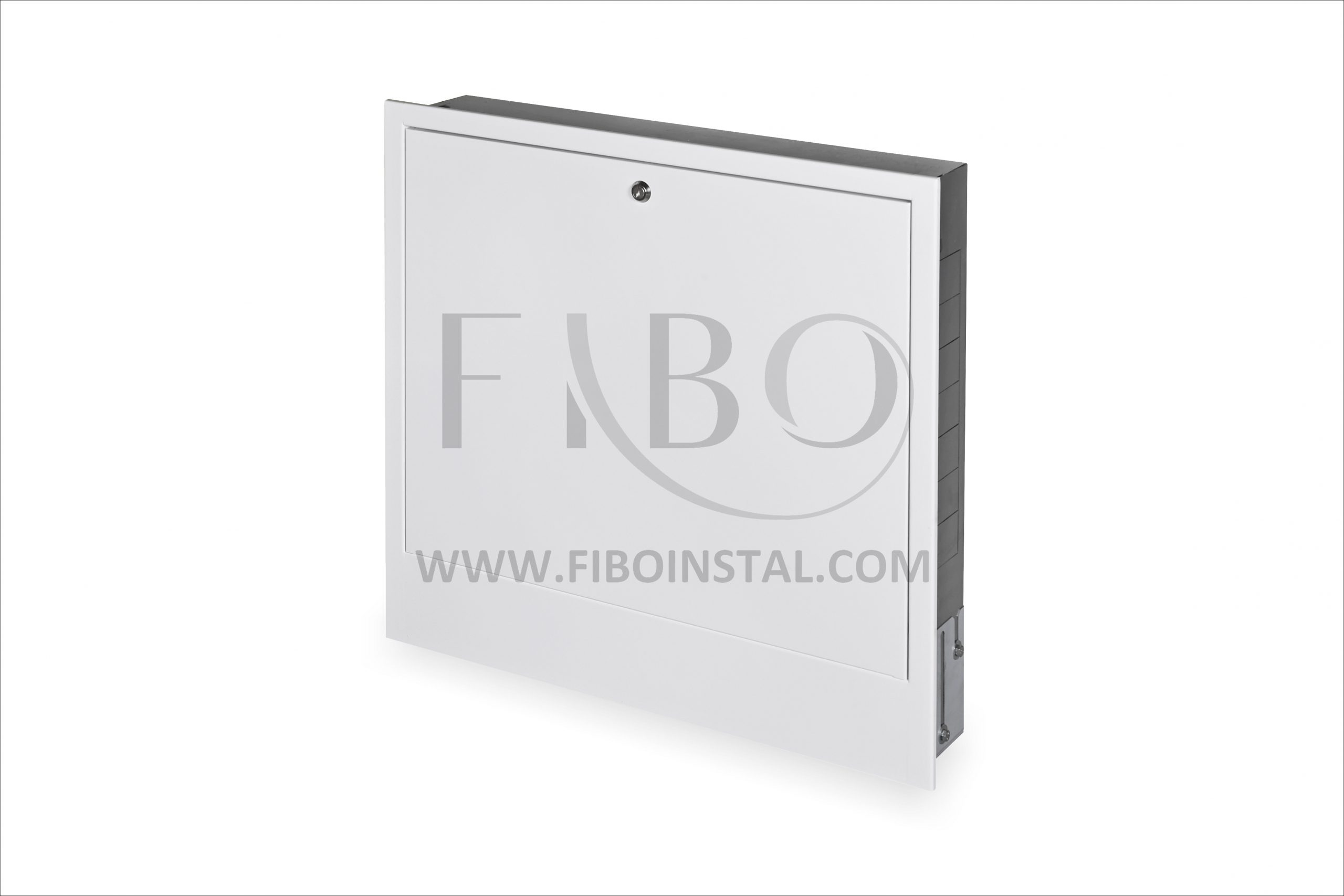

A Economical manifold cabinets for mounting heating circuit distributors.
Made entirely of 0.8 mm galvanized steel sheet, additionally the front of the cabinet is powder coated. The installation depth of the cabinet is adjustable, and the front is fully removable, which enables convenient installation of the manifold.
It does not have a height adjusting bar.
The door is closed with a coin lock.
TECHNICAL DETAILS:
- Material: galvanized steel sheet 0,8 mm
- Front: powder coated RAL 9003
- Doors: closed with a coin lock
- Colour: white
- weight: 5,8 kg
- the installation depth of the cabinet is adjustable

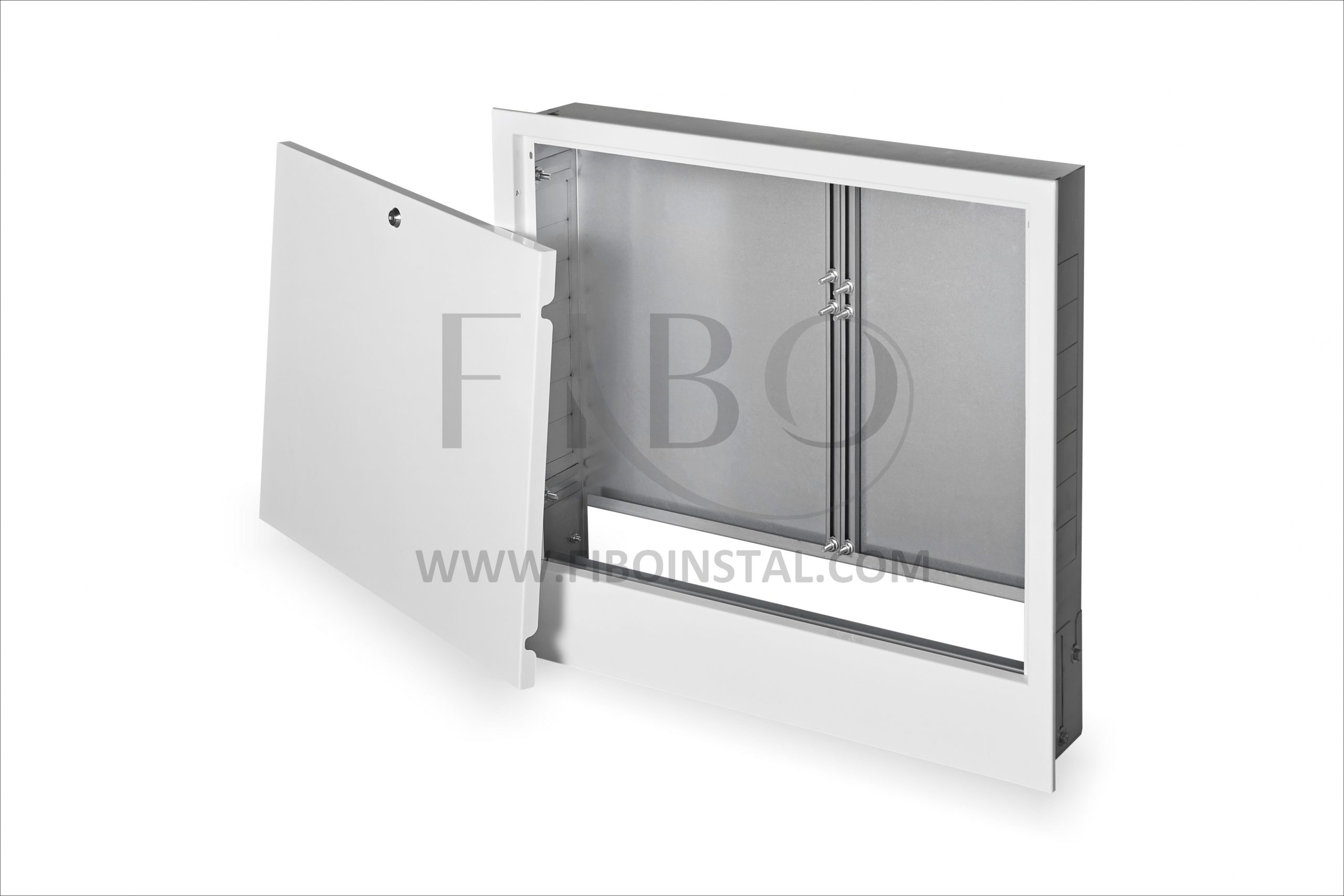

- the front is fully removable which enables convenient installation of the manifold

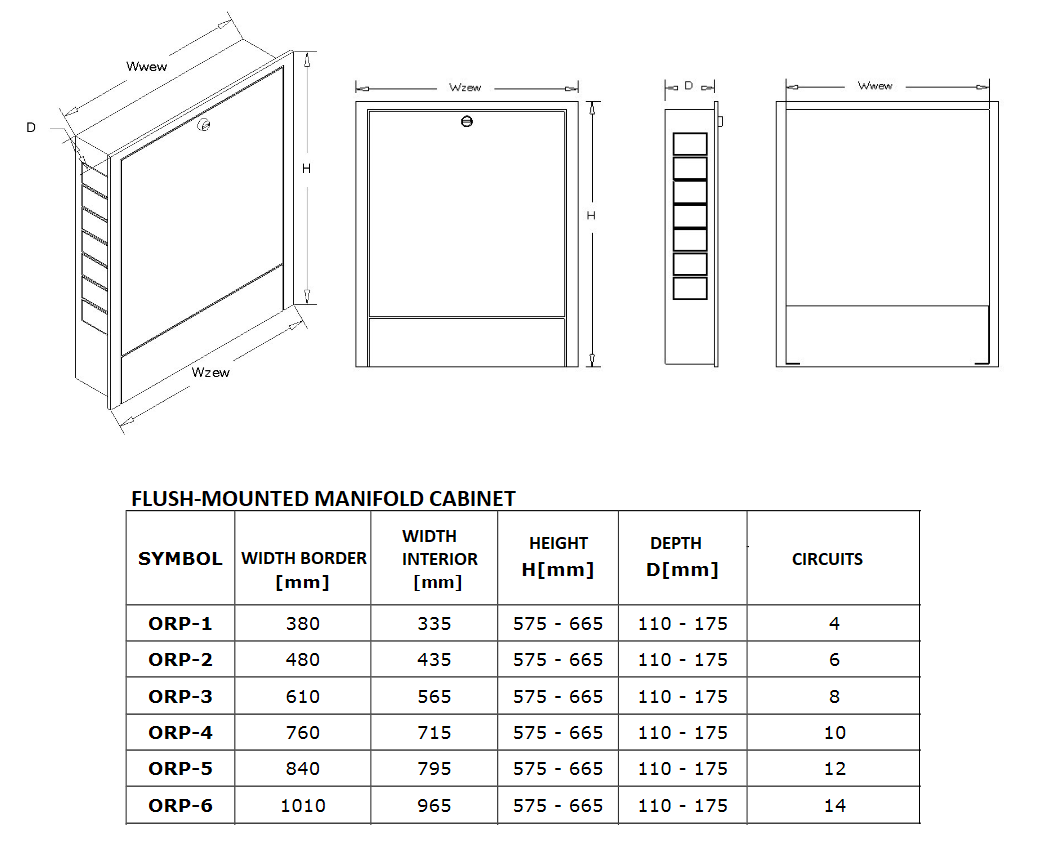

DIMENSIONS:
- width border: 480 mm
- width interior: 435 mm
- height: 575-665 mm
- depth: 110-175 mm
Name / size
Code
Items / package
szafka PT 6 ob.
ORP-2
1
