Technical Specification

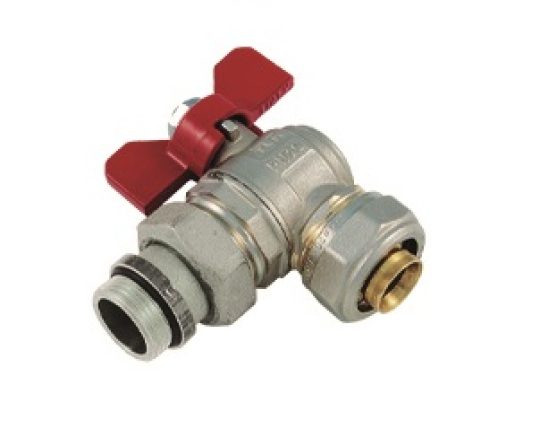

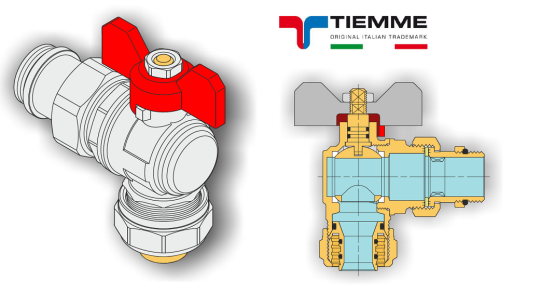

Angle ball valves PN 30 with multilayer pipes and tail male ends UNI ISO 228 with o-ring for water manifolds.
Available with red or blue aluminium “T” handle.
Suitable for:
- domestic and commercial plumbing,
- industrial and agricultural applications,
- heating and sanitary systems,
- pneumatic systems,
- oils,
- generally with every non aggressive fluid.
TECHNICAL FEATURES:

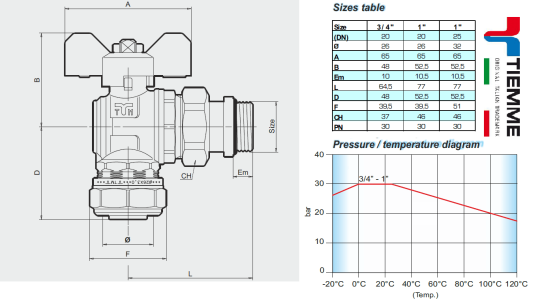

- Dimension: 3/4” x 26 PEX
- Manufacturer: TIEMME (Italy)
- Maximum temperature: 110°
- Minimum temperature: -20°
- Maximum operating pressure: 30 bar (20 bar with pneumatic systems)
- Ends: compression ends, for multilayer pipe /male
- Body: CW617N-EN12165 brass nickel plated
- Ball: CW617N-EN12164 brass chromium plated
- Stem: CW617N-EN12164 brass nickel plated
- O-ring: nitrile rubber NBR
- Side washers: P.T.F.E
- Compression ring: CW508L-EN12449 brass /Annealed
- Nut: CW617N-EN12165 brass nickel plated
- Handle & butterfly: Aluminium painted
- Handle’s nut: steel zinc plated
- Hose end: CW617N-EN12164 brass
Name / size
Code
Items / package
3/4''x 26 PEX
1620014
1
