MODULAR SANITARY MANIFOLDS
The domestic water distribution system is very popular in many countries. In Poland, although less known, it gained many supporters, including among professionals for whom it has become the leading system in its services. Investors are also increasingly choosing a utility water distribution system for renovated and newly built facilities, both for single and multi-family buildings.
The first and the most important feature of a distributor system is its RELIABILITY.
The lack of connections in inaccessible places, such as walls or floors, eliminates the risk of their costly breakdowns. In contrast to the tee system, which involves the use of multiple press connections in the installation. Each such connection is a risk of leakage.
Recently, the technical requirements for water installation in a new building have also been increasing. Insurance companies pay attention to what system the water installation is made of, and the one made by the distribution system becomes more attractive due to the very low probability of failures (leakage during use is extremely rare).
Particularly private investors are very eager to opt for distributors that are also competitive in terms of price.
Another important aspect in favor of the distribution system is the convenience and flexibility of use, which gives us control over the installation – we can “cut off” the water supply to individual devices without depriving other consumers in the house of access to water.
Ease and speed of assembly are features that should convince non-specialists. Even if you do not have experience in installation, you will be great at distributing the installation.
Installation of the system in dedicated cabinets, which you can also find in our offer, does not require the use of specialized tools. However, it allows us to have constant control over connections and the possibility of quick service.
A large selection of manifold types makes it easy to adjust the installation according to individual needs.
You can choose from 1 ″ and 3/4 ″ manifolds with the main beam.
Connection threads are available in 2 sizes: 1/2 and 3/4 ″.
Are you thinking about choosing the right manifold for you? Contact us and we will help you adjust and complete the system.

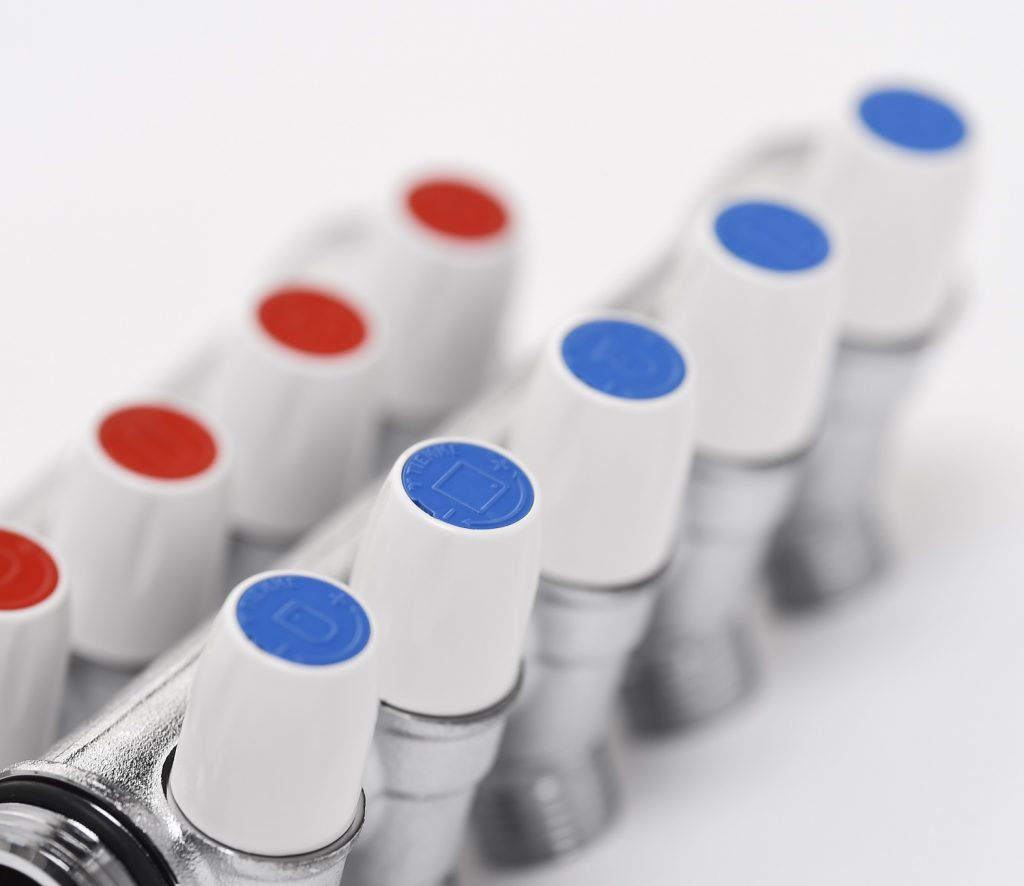

The valves have a special insert for the caps, which allows the marking of hot or cold water with the appropriate color, as well as the symbol of the receiver (washbasin, toilet, bathtub, shower, washing machine, bidet, heater).
You choose the tags yourself – when buying, please provide them in the message to us. Otherwise, we will send them randomly.
Our system can be extended with other sections by connecting the main divider beams with each other by screwing them together. They are connected in a simple and quick way thanks to perfectly matched threads with an EPDM gasket. You don’t need hemp for hemming.
In the case of TIEMME manifolds, we can replace the valve heads on each water circuit separately. This ensures a long service life of the manifold once purchased. You can buy the heads additionally as a spare part.
AVAILABLE TYPES OF PIPE FITTINGS:

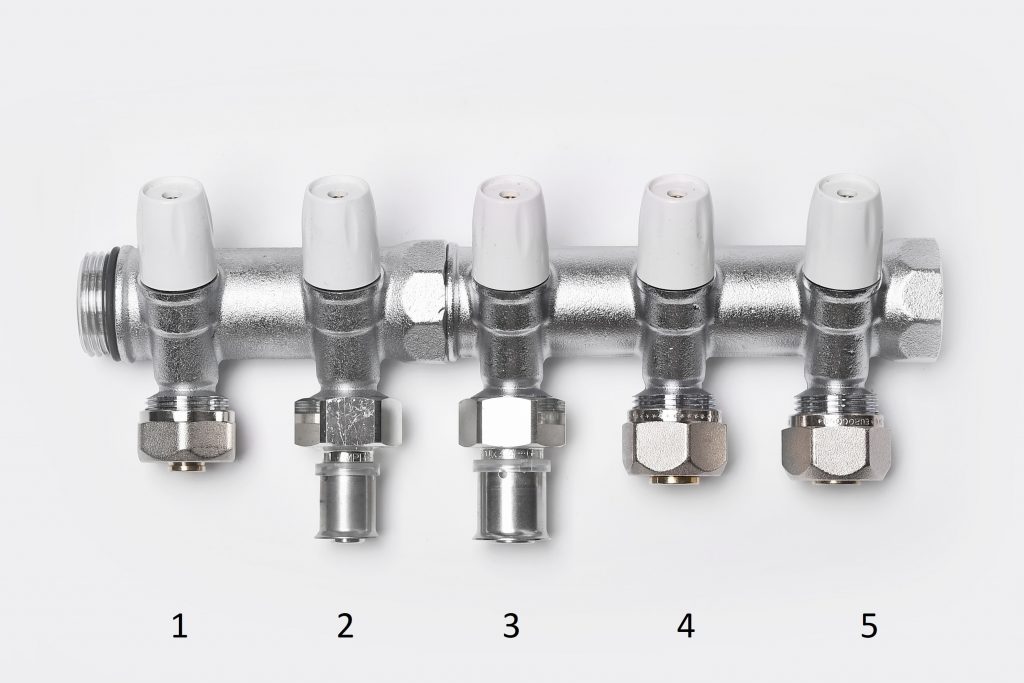

In the case of a manifold with connection threads in size 1/2 ″, we can choose clamped twisted as well as pressed couplings:
1. 1/2 ″ x16x2.0 twisted compression fitting nickel plated
2. 1/2 ″ x16x2.0 twisted compression fitting, chrome plated
3. MPR 1/2 ″ x16 x 2.0 F pressed connector with a nut and a flat gasket
4. Reduction adapter 1/2 ″ x20 PEX
5. MPR Press connector 1/2 ″ x20x2.25 F with nut and flat gasket

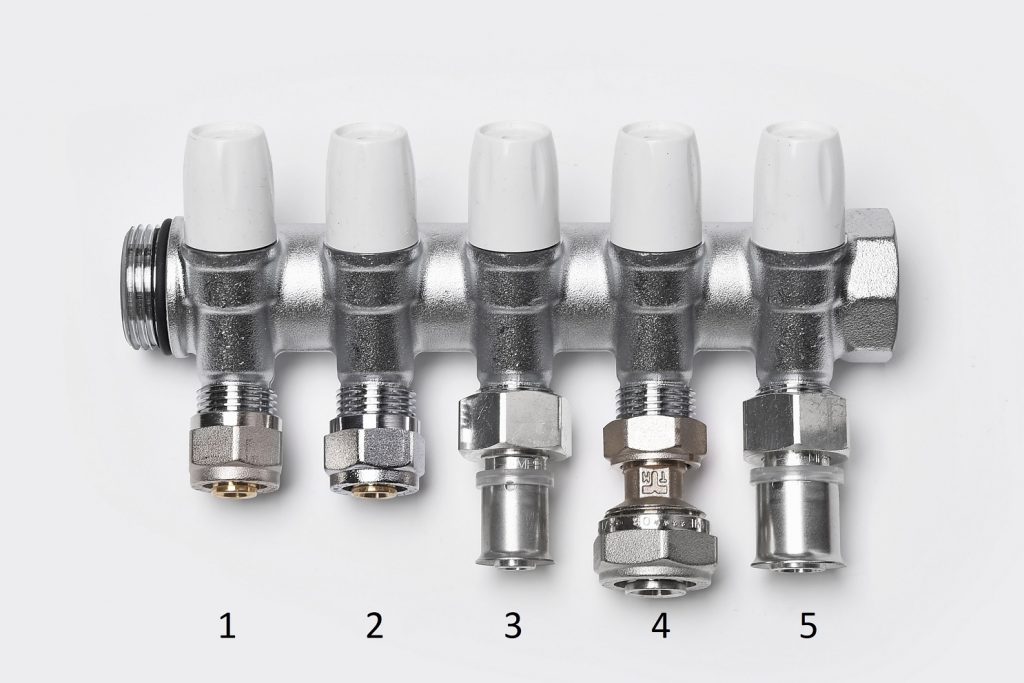

For the manifold with connection threads in size 3/4 ″, we have the following couplings to choose from:
1. 3/4 ”x16x2.0 twisted compression fitting
2. MPR Press connector 3/4 ″ x16 x 2.0 F with nut and flat gasket
3. MPR Press connector 3/4 ″ x20x2.25 F with nut and flat gasket
4. 3/4 ”x20x2.25 twisted compression fitting
5. 3/4 ”x20x2.0 twisted compression fitting
A large selection of manifold types makes it easier to tailor the installation to individual needs.
Are you wondering about choosing the proper manifold for you? Contact us and we will help you adjust and complete the system.
BELOW ARE PRESENTED MODULAR BRASS MANIFOLDS GROUPED BY TYPE

CHROME-PLATED BRASS MANIFOLDS
MADE OF BRASS COATED WITH CHROME FOR BETTER PROTECTION AGAINST CORROSION
THREAD SIZE FOR CONNECTORS
1/2″ AND 3/4″

BRASS MANIFOLDS
MADE OF BRASS WITHOUT CHROME COATING
THREAD SIZE FOR CONNECTORS
1/2″
